Blue SOCKET Bluetooth CHS 7Ci v3, Apple iOS, 1D, BT v2.1, HID, SPP, Vibrate

Blue SOCKET Bluetooth CHS 7Ci v3, Apple iOS, 1D, BT v2.1, HID, SPP, Vibrate

  • $399.95

or make 4 interest-free payments of $99.98 fortnightly with Afterpay More info

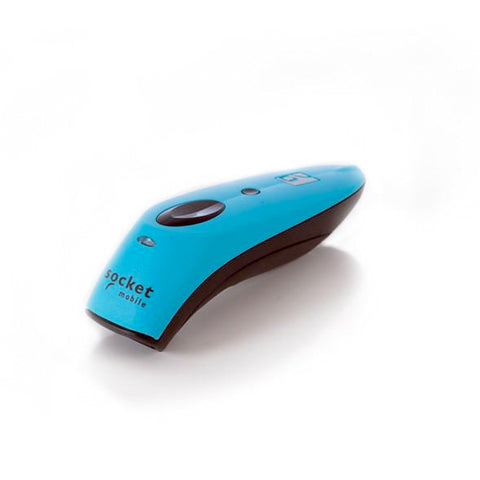

The Socket Bluetooth Cordless Hand Scanner (CHS) 7Ci brings low cost 1D wireless bar code scanning without sacrificing performance in addition to being an Apple certified product, thus making the CHS 7Ci an excellent general purpose data collection solution for the mobile workforce.


•Designed for Apple iOS 4 and higher or any other Bluetooth enabled tablet, smartphone, desktop/laptop computers.
•Reads all common 1D/linear and stacked barcodes up to 20” (51 cm) away.
•Wireless Bluetooth connection up to 330 ft (100m) (with compatible host Bluetooth)
•Long battery life for use over extended periods on a single charge.
•Beep tone and LED indicators for good barcode reads, power and Bluetooth connection status.
•Bluetooth HID profile support for quick set up with no software installation required.
•Bluetooth SPP profile support with SocketScan 10 wedge software for easy set up and quick scanner configuration.
•Apple iOS certified. Scanner includes special authentication chip to allow Bluetooth SPP connections to iPad / iPhone / iPod touch devices running a compatible application developed with SocketScan 10 SDK v10.0.8.



Barcode Dimension: 1D
Bluetooth: Yes
Brand Name: Socket Mobile
Colour: Blue
Connectivity Technology: Wireless
Image Sensor: Imager
Product Family: 7
Product Type: Handheld Barcode Scanner
Battery Information
Battery Chemistry: Nickel Metal Hydride (NiMH)
Battery Rechargeable: Yes
Battery Size Supported: AAA
Maximum Number of Scans per Full Charge: 15000
Number of Batteries Supported: 2
General Information
Brand Name: Socket Mobile
Manufacturer Part Number: CX2887-1486
Manufacturer Website Address:
Manufacturer: Socket Mobile, Inc
Product Model: CHS 7Ci
Product Name: CHS 7Ci, 1D Barcode Scanner, Blue
Product Series: 7
Product Type: Handheld Barcode Scanner
Additional Information:

USB Cable separate

Environmental Certification: RoHS
Environmentally Friendly: Yes
Platform Supported: Android
Network & Communication
Bluetooth: Yes
Physical Characteristics
Colour: Blue
Depth: 39.9 mm
Height: 128.8 mm
Weight (Approximate): 45.4 g
Width: 34.5 mm
Power Description
Power Source: Battery
Technical Information
Barcode Dimension: 1D
Barcode Symbology Supported:
  • Bookland EAN (ISBN / EAN-13)
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • GS1 DataBar (RSS)
  • GS1-128 (UCC-128/EAN-128)
  • Interleaved 2 of 5 (ITF-14)
  • MSI
  • Plessey
  • UPC/EAN/JAN supplemental redundancy
  • Coupon Report
  • Inverse 1D
  • ISBT concatenations
  • Matrix 2 of 5
Connectivity Technology: Wireless
Image Sensor: Imager
Scan Rate: 5 scan/s
Scanning Distance: 508 mm


nb| colours may vary slightly to delivered product as per manufacturing/screen imagery
